Neuron Explorer

Streamlit GUI for exploring neuron activations with a streaming concept labeler, active probing, and a realtime map view inspired by the real‑time neuron labeling demo.

Features

• Live neuron labeling with confidence tracking, trends, and auto‑explore
• Active probing to focus on under‑sampled concepts
• Unit inspection + activation dictionary (top prompts per unit)

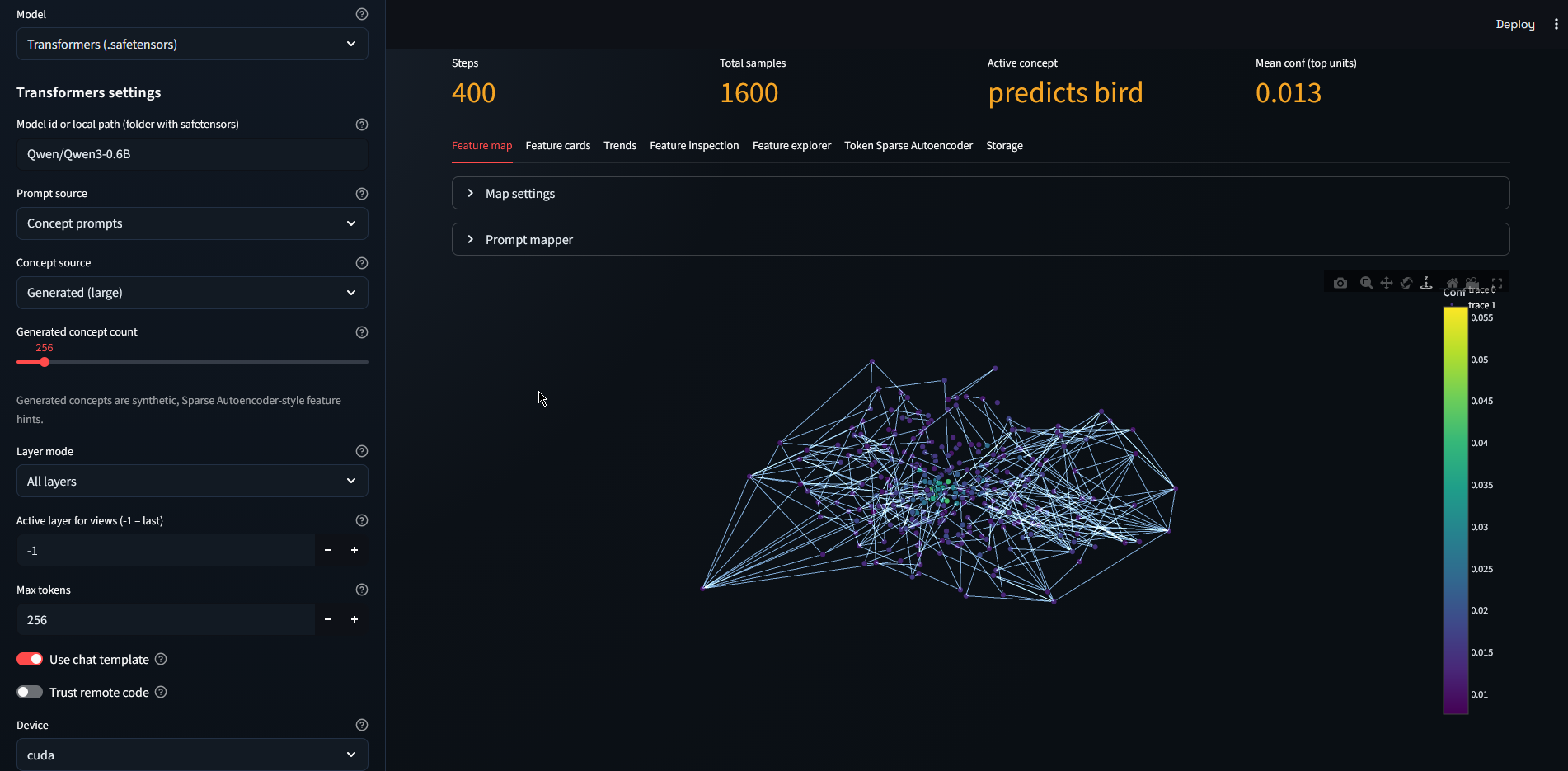

• Interactive map with prompt projection; 3D map in All layers mode
• Token‑level Sparse Autoencoder decoding (offline + realtime)
• Storage tools: rebuild indices, purge decoded databases
• Works with a built‑in toy model, TorchScript models, and Transformers safetensors models

Requirements

• Windows 10
• Python 3.10+

Quick start (Windows 10)

Use the bundled runner (installs requirements and launches the app):

.\run.bat

Manual setup:

python -m venv .venv
.\.venv\Scripts\Activate.ps1
pip install -r requirements.txt
pip install -r requirements-hf.txt
streamlit run app.py

Optional TorchScript support only:

pip install -r requirements-torch.txt

Configuration

All settings live in the Streamlit sidebar and are saved to settings.json on exit. To publish, keep settings.json out of Git and copy defaults from settings.example.json.

• Model selection, device, dtype, and attention implementation
• Concept list or generated concept dictionary
• Active probing and auto-explore controls
• Map settings and prompt mapper options
• Token‑level Sparse Autoencoder decoding options and storage paths

Run and development

streamlit run app.py

Models

Transformers: enter a Hugging Face model id or a local folder path containing .safetensors, tokenizer, and config files. Local model folders are ignored in Git via .gitignore.

Token‑level Sparse Autoencoder decoding

Use the Token Sparse Autoencoder tab to:

• Run offline dataset passes (batch decode, top‑K per token, sqlite output)
• Run realtime decoding during generation (newest token only)
• Build indices for feature → contexts and span → features

Dataset formats:

• .jsonl with { "text": "..." } or { "prompt": "..." }
• .txt with one prompt per line

Decoded data lives under token_out_dir/decoded.sqlite and can be purged from the Storage tab.

Troubleshooting

Start by reading the Streamlit console output.

• HFValidationError: Repo id must use alphanumeric...
  Hidden characters or an invalid local path. Re-type the model path and delete settings.json if it persists.
• CUDA error: an illegal memory access was encountered
  Switch Device to CPU, set Attention to eager, lower batch size / max tokens, or disable All layers.
• expected mat1 and mat2 to have the same dtype
  Set Torch dtype to float16 or float32 and keep it consistent with the device.
• TypeError: set_autocast_dtype(): ... must be torch.dtype, not str
  Ensure Torch dtype is set to auto, float16, bfloat16, or float32 in the UI.
• SVD did not converge (map)
  Reduce map jitter/spread or run a few more steps to stabilize activations.
• Map/graphs empty
  Click Run to generate data; the map updates after steps are collected.

Research

TokenSensor (Experimental)

TokenSensor is an experimental interpretability mode that treats a language model like a running system and exposes pertoken telemetry.

Every token that flows through the model produces hidden states at each layer. TokenSensor attaches a small recorder at a chosen hook point (usually a residual stream) and translates each token hidden state into a sparse, humaninspectable feature readout using a pretrained Sparse Autoencoder (SAE). This reframes mapping as building an index over token events, more like profiling and debugging than afterthefact inspection.

What it records

For each token position, TokenSensor stores a compact record:

• token id and decoded token string
• position in the sequence
• hook point (layer and stream)
• top K SAE features and activation values

From this stream you can build:

• feature to top activating contexts
• prompt span to dominant features
• feature cooccurrence graphs
• feature exemplars for labeling and verification

How it works

At a chosen hook point, for each token hidden vector h with size D:

1. Run the model to obtain h
2. Decode SAE activations a = f(W_enc · h + b)
3. Keep only top K activations for that token
4. Store (token, pos, topK feature ids, topK values)

The point is sparsity. You do not store everything, you store the most informative slice.

Operating modes

Offline mapping mode (best signal, fastest overall)

• Run a dataset of prompts in batches
• Collect hidden states for all tokens
• Decode SAE with a single large batched matmul
• Build indices for browsing and labeling

Realtime sensing mode (best interactivity)

• During generation, hook only the newest token position
• Decode SAE for that one token
• Display top K features live with a rolling context window

Speed notes

TokenSensor cannot be free. You must run tokens to get hidden states, and SAE decode adds compute. Overhead stays bounded by design:

• decode only one or a few layers
• batch decode whenever possible
• keep only top K per token
• prefer GPU half precision for SAE decode when available
• in realtime decode only the newest token

Labeling and truth

Feature names are hypotheses, not truth. Treat labels as metadata backed by evidence:

• label from many top contexts, not a single example
• look for clusters inside a feature’s contexts
• collect counterexamples where the label should apply but does not
• use causal tests (feature ablation or steering) when it matters

Coaxing features for exploration

TokenSensor supports targeted exploration, with a strict evidence mindset:

• Probe search: find where a feature fires in real datasets and read contexts (evidence)
• Feature targeted generation: bias sampling toward continuations that increase a chosen feature (microscope, not proof)

Data contract

Datasets

• .jsonl with { "text": "..." } or { "prompt": "..." }
• .txt with one prompt per line

SAEs

• pretrained SAE weights compatible with the chosen hook point
• config describing D, number of features, nonlinearity, and target layer

Outputs

• per token top K feature records
• feature and span indices for fast browsing and search
