vRouter-Operator

A Kubernetes Operator that manages the virtual router configuration running on KubeVirt, Proxmox VE, or bare-metal via the vrouter-daemon gRPC agent. Configuration is delivered via QEMU Guest Agent (QGA) over a virtio channel or gRPC - no network reachability or sidecar injection required.

vRouter-Operator is a community project for managing virtual routers on Kubernetes/KubeVirt.

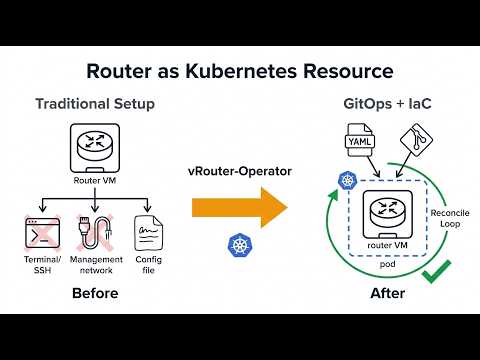

Demo

YouTube: https://www.youtube.com/watch?v=RsieH9gFU4I

How It Works

ProxmoxCluster ──clusterRef──→ VRouterTarget ←──── VRouterBinding ──── VRouterTemplate
(endpoints +                   (provider +          (bind template       (config/commands
 credentials)                   params)              to targets)          template text)
      │                              │
ProxmoxCluster                VRouterTarget
Controller                    Controller
(polls node,                  (polls IsVMRunning every 60s,
 reboot detect,                updates status.vmRunning,
 unreachable →                 VMI watch for KubeVirt instant detect)
 vmRunning=false)                    │
      │                        status.vmRunning change
      └─ status.proxmoxNode    → triggers VRouterConfig reconcile
         status.lastRebootTime
                                     │
                              VRouterConfig Controller
                              → resolve VRouterTarget (provider info)
                              → check VM running (skip if stopped)
                              → wait for vyos-router.service active
                              → deliver config via QGA or gRPC
                              → update status (phase, conditions)

CRDs

CRD	Short name	Purpose
`VRouterTemplate`	`vrtt`	Go `text/template` config/command template
`VRouterTarget`	`vrt`	Target VM + provider config + default params
`VRouterBinding`	`vrb`	Binds a template to one or more targets
`VRouterConfig`	`vrc`	Final rendered config applied to one router (auto-generated or direct)
`ProxmoxCluster`	`pxc`	Centralised Proxmox endpoint + credentials (Proxmox provider only)

Prerequisites

Kubernetes cluster
- KubeVirt installed for the kubevirt provider (tested on Harvester)
- Proxmox VE cluster accessible for the proxmox provider
- vrouter-daemon deployed for the vrouter-daemon provider
cert-manager (for webhook TLS)
VyOS VM image with qemu-guest-agent installed (no cloud-init needed)

Build VyOS image

# VyOS image build flavor
image_format = "qcow2"
image_opts = "-c"
disk_size = 4
packages = ["qemu-guest-agent"]

[boot_settings]
    console_type = "tty"
    console_num = '0'

Installation

Prerequisites

Kubernetes 1.24+

cert-manager installed (required for webhook TLS)

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/latest/download/cert-manager.yaml
kubectl wait --for=condition=Available deployment --all -n cert-manager --timeout=120s

Helm (recommended)

helm install vrouter-operator ./charts/vrouter-operator \
  --namespace vrouter-system --create-namespace

Common values overrides

# Pin to a specific image tag
helm install vrouter-operator ./charts/vrouter-operator \
  --namespace vrouter-system --create-namespace \
  --set controllerManager.manager.image.tag=v0.1.0

# Disable webhooks (dev/testing only — no validation)
helm install vrouter-operator ./charts/vrouter-operator \
  --namespace vrouter-system --create-namespace \
  --set controllerManager.manager.args="{--metrics-bind-address=:8443,--leader-elect,--health-probe-bind-address=:8081,--enable-webhooks=false}"

Upgrade

helm upgrade vrouter-operator ./charts/vrouter-operator \
  --namespace vrouter-system

Uninstall

helm uninstall vrouter-operator --namespace vrouter-system

Kustomize / raw manifests

make install          # install CRDs into current cluster
make deploy           # deploys ghcr.io/tjjh89017/vrouter-operator:latest by default
# or pin a version:
make deploy IMG=ghcr.io/tjjh89017/vrouter-operator:v0.1.0

Quick Start

1. Install the operator

helm install vrouter-operator ./charts/vrouter-operator \
  --namespace vrouter-system --create-namespace

2. Create a VRouterTemplate

Define config/commands using Go text/template syntax with sprig functions:

apiVersion: vrouter.kojuro.date/v1
kind: VRouterTemplate
metadata:
  name: hostname-template
  namespace: default
spec:
  commands: |
    set system host-name '{{ .hostname }}'

3. Create a VRouterTarget

KubeVirt:

apiVersion: vrouter.kojuro.date/v1
kind: VRouterTarget
metadata:
  name: vyos-kubevirt
  namespace: default
spec:
  provider:
    type: kubevirt
    kubevirt:
      name: vyos-kubevirt   # VirtualMachine name
      namespace: default
  params:
    hostname: "my-vyos-router"

Proxmox VE (requires a ProxmoxCluster, see below):

apiVersion: vrouter.kojuro.date/v1
kind: VRouterTarget
metadata:
  name: vyos-proxmox
  namespace: default
spec:
  provider:
    type: proxmox
    proxmox:
      vmid: 121
      clusterRef:
        name: pve-cluster
        namespace: default
  params:
    hostname: "my-vyos-router"

vrouter-daemon (bare metal or any VM with daemon installed):

apiVersion: vrouter.kojuro.date/v1
kind: VRouterTarget
metadata:
  name: vyos-daemon
  namespace: default
spec:
  provider:
    type: vrouter-daemon
    daemon:
      address: "vrouter-daemon.vrouter-system.svc:50052"
      agentID: "7dea4734a47e49b0952457b684587e7c"
  params:
    hostname: "my-vyos-router"

4. Create a VRouterBinding

Bind one or more templates to one or more targets:

apiVersion: vrouter.kojuro.date/v1
kind: VRouterBinding
metadata:
  name: hostname-binding
  namespace: default
spec:
  templateRefs:                    # ordered list; config/commands concatenated in order
    - name: hostname-template
  save: true          # persist config after commit (default: true)
  targetRefs:
    - name: vyos-kubevirt
    - name: vyos-proxmox
    - name: vyos-daemon

The operator will automatically create a VRouterConfig for each target and apply it to the VM via QGA or gRPC.

5. Check status

kubectl get vrc                  # or: kubectl get vrouterconfig
kubectl get vrt                  # check vmRunning column
kubectl get vrb                  # or: kubectl get vrouterbinding
kubectl wait vrc/hostname-binding.vyos-kubevirt --for=condition=Applied

Proxmox Provider

The Proxmox provider uses the Proxmox REST API to communicate with VMs via QEMU Guest Agent.

ProxmoxCluster

ProxmoxCluster centralises endpoint and credential configuration for a Proxmox VE cluster. All VRouterTarget resources on the same cluster share one ProxmoxCluster instead of repeating credentials per target.

The controller polls /cluster/resources on syncInterval and writes the resolved node name into VRouterTarget.status.proxmoxNode, eliminating per-operation node-lookup API calls.

If the Proxmox API is unreachable (e.g. network issue), the controller treats all associated VMs as stopped (status.vmRunning=false) and retries after syncInterval.

apiVersion: vrouter.kojuro.date/v1
kind: ProxmoxCluster
metadata:
  name: pve-cluster
  namespace: default
spec:
  endpoints:
    - "https://192.168.1.10:8006"
  credentialsRef:
    name: proxmox-credentials   # Secret with api-token-id and api-token-secret
  insecureSkipTLSVerify: false
  syncInterval: "60s"
  checkGuestUptime: true        # detect guest-initiated reboots via QGA (default: true)

apiVersion: v1
kind: Secret
metadata:
  name: proxmox-credentials
  namespace: default
stringData:
  api-token-id: "user@pam!token-name"
  api-token-secret: "<token-secret>"

Reboot detection

Scenario	Detection
Proxmox stop → start (hard restart)	Proxmox uptime resets → detected automatically
Guest `reboot` command (soft reboot)	Detected via `checkGuestUptime: true` (default); reads `/proc/uptime` via QGA

When a reboot is detected, VRouterTarget.status.lastRebootTime is updated and the VRouterConfig controller forces a re-apply on the next reconcile.

Check sync status

kubectl wait --for=condition=Synced proxmoxcluster/pve-cluster --timeout=120s
kubectl get vrt vyos-proxmox -o jsonpath='{.status.proxmoxNode}'

vrouter-daemon Provider

The vrouter-daemon provider enables managing VyOS routers on bare metal or any VM without KubeVirt or Proxmox VE. It uses the vrouter-daemon gRPC agent, which runs on the VyOS host and connects back to a server deployed in Kubernetes.

Architecture

vrouter-operator               vrouter-server (k8s)
┌──────────────┐               ┌──────────────────────────────┐
│  Controller  │   gRPC        │  ControlService (port 50052) │
│       │      │──────────────→│         │                    │
│  gRPC Client │               │    Redis (broker + registry) │
└──────────────┘               │         │                    │
                               │  AgentService (port 50051)   │
                               └─────────┬────────────────────┘
                                         │ gRPC bidir stream
                                   ┌─────┴──────┐
                                   │ VyOS agents │  (bare metal)
                                   └────────────┘

vrouter-server — runs in Kubernetes; two services:
- ControlService (ClusterIP :50052) — operator-facing: IsConnected, ApplyConfig
- AgentService (NodePort 30051) — agent-facing bidirectional stream
vrouter-agent — runs on VyOS host; connects to AgentService and executes config pushes locally
Redis (HA via Sentinel) — brokers config payloads between server replicas and agents

Deploy vrouter-server

kubectl apply -f deploy/kubernetes/namespace.yaml
kubectl apply -f deploy/kubernetes/redis-ha.yaml
kubectl apply -f deploy/kubernetes/vrouter-daemon.yaml

Creates in vrouter-system namespace: Redis HA (3+3 Sentinel), vrouter-daemon deployment (2 replicas), ClusterIP service for the operator, NodePort service for agents.

Install vrouter-agent on VyOS

Download the .deb from the latest release:

dpkg -i vrouter-agent_<version>_amd64.deb

Edit /etc/default/vrouter-agent:

AGENT_ARGS="--server 172.30.0.40:30051"   # NodePort address
VRF_NAME=mgmt                              # optional: run inside a VRF

systemctl start vrouter-agent
systemctl status vrouter-agent

Getting the agentID

By default vrouter-agent uses /etc/machine-id as its agent ID:

cat /etc/machine-id
# e.g. 7dea4734a47e49b0952457b684587e7c

You can override it with --agent-id or the AGENT_ID environment variable in /etc/default/vrouter-agent.

VRouterTarget configuration

apiVersion: vrouter.kojuro.date/v1
kind: VRouterTarget
metadata:
  name: vyos-daemon
  namespace: default
spec:
  provider:
    type: vrouter-daemon
    daemon:
      address: "vrouter-daemon.vrouter-system.svc:50052"  # ClusterIP service
      agentID: "7dea4734a47e49b0952457b684587e7c"         # /etc/machine-id on VyOS host
      timeoutSeconds: 60                                   # optional, default 60
  params:
    hostname: "my-vyos-router"

VM running detection

IsVMRunning calls ControlService.IsConnected. If the agent is not connected to the daemon (VM stopped, agent not running, or network issue), the VM is treated as stopped and config apply is skipped until the agent reconnects.

Disconnect policy

The agent supports a --disconnect-policy flag that controls behavior when the server is unreachable:

Policy	Behavior
`keep` (default)	Maintain current config
`rollback`	Re-apply init config after repeated failures

Comparison with other providers

	KubeVirt	Proxmox VE	vrouter-daemon
Config delivery	QGA via SPDY exec	QGA via REST API	gRPC (daemon)
Script rendering	Operator-side	Operator-side	Daemon-side
VM running detect	VMI object + watch	Proxmox API	`IsConnected` RPC
Bare metal support	No	No	Yes
Extra infra needed	KubeVirt	Proxmox VE	vrouter-daemon + Redis

VRouterTarget Status

The VRouterTarget controller polls IsVMRunning every 60 seconds and updates status.vmRunning. For KubeVirt, VMI watch events trigger an immediate check without waiting for the next poll.

Field	Description
`status.vmRunning`	Whether the VM was observed as running in the last poll
`status.proxmoxNode`	Proxmox node hosting the VM (Proxmox provider only)
`status.lastRebootTime`	Timestamp of last detected reboot (Proxmox provider only)

When vmRunning changes from false to true, all referencing VRouterConfig resources are automatically re-enqueued for reconcile.

kubectl get vrt                  # shows VM Running column
kubectl get vrt vyos-kubevirt -o jsonpath='{.status.vmRunning}'

Direct VRouterConfig (without Binding)

For simple cases or direct management, create a VRouterConfig directly:

apiVersion: vrouter.kojuro.date/v1
kind: VRouterConfig
metadata:
  name: my-router-config
  namespace: default
spec:
  targetRef:
    name: vyos-kubevirt
  save: true
  commands: |
    set system host-name 'my-vyos-router'

Params Merge

When a VRouterBinding has both params and its VRouterTarget has params, they are merged with target params taking priority:

final params = binding.params ← target.params

VRouterConfig Status

Phase	Meaning
`Pending`	Waiting for VM to be ready
`Applying`	Script dispatched, waiting for completion
`Applied`	Config applied successfully
`Failed`	Script exited with non-zero code (no auto-retry; edit spec to retry)

The Applied condition is set for kubectl wait support:

kubectl wait vrc/<name> --for=condition=Applied --timeout=120s

Provider Support

Provider	Status	Notes
KubeVirt	✅ Supported	Same-cluster KubeVirt; SPDY exec into virt-launcher pod
Proxmox VE	✅ Supported	REST API + QGA; credentials via ProxmoxCluster
vrouter-daemon (gRPC)	✅ Supported	Standalone daemon; bare metal or any VM

Documentation

Document	Description
docs/SPEC.md	Authoritative design spec (implemented state)
docs/TODO.md	Backlog — planned features, not yet implemented
docs/proposals/	Design proposals for future features

Development

# Build
make build

# Run locally (webhooks disabled)
ENABLE_WEBHOOKS=false go run ./cmd/main.go

# Run tests
make test

# After modifying api/v1/ types
make generate   # regenerate zz_generated.deepcopy.go
make manifests  # regenerate CRDs and RBAC

All commits require DCO sign-off: git commit -s

Name		Name	Last commit message	Last commit date
Latest commit History 83 Commits
.devcontainer		.devcontainer
.github/workflows		.github/workflows
api/v1		api/v1
charts/vrouter-operator		charts/vrouter-operator
cmd		cmd
config		config
docs		docs
hack		hack
internal		internal
test		test
.dockerignore		.dockerignore
.gitignore		.gitignore
.golangci.yml		.golangci.yml
CLAUDE.md		CLAUDE.md
Dockerfile		Dockerfile
LICENSE		LICENSE
Makefile		Makefile
PROJECT		PROJECT
README.md		README.md
go.mod		go.mod
go.sum		go.sum

Folders and files

Latest commit

History

Repository files navigation

vRouter-Operator

Demo

How It Works

CRDs

Prerequisites

Build VyOS image

Installation

Prerequisites

Helm (recommended)

Common values overrides

Upgrade

Uninstall

Kustomize / raw manifests

Quick Start

1. Install the operator

2. Create a VRouterTemplate

3. Create a VRouterTarget

4. Create a VRouterBinding

5. Check status

Proxmox Provider

ProxmoxCluster

Reboot detection

Check sync status

vrouter-daemon Provider

Architecture

Deploy vrouter-server

Install vrouter-agent on VyOS

Getting the agentID

VRouterTarget configuration

VM running detection

Disconnect policy

Comparison with other providers

VRouterTarget Status

Direct VRouterConfig (without Binding)

Params Merge

VRouterConfig Status

Provider Support

Documentation

Development

About

Resources

License

Code of conduct

Security policy

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Uh oh!

Contributors

Uh oh!

Languages

Packages
